AMSOIL offers premium air filters that utilize
PowerCore™ filtration technology for Ford 6.0L Diesel PowerStroke™
and GM H2 Hummer 6.0L Vortec™ applications. The rugged structure
of PowerCore™ filters features an innovative, layered, fluted
filter media, which allows air to enter an open flute while forcing
it out an adjacent flute, allowing only clean air into the engine.
Dirty air is effectively filtered and cleaned in only one pass
through the media.
Filters include:
P603577 - PowerCore® Air Filter for Ford
6.0L Diesel Powerstroke™ Application
PCFH2 - PowerCore® Air Filter for H2 Hummer 6.0L Vortec™
Application
PCF73 - PowerCore® 7.3L PowerStroke Filter Replacement Cartridge
P548070 - Freightliner M-2 - Primary Application
P544432 - Freightliner M-2 - Secondary Application
P606121 - John Deere 6020 Series - Primary (AL150288)
P606119 - John Deere 6020 Series - Secondary, 4 Cylinder (AL119839)
P606120 - John Deere 6020 Series - Secondary, 6 Cylinder (AL150285)
FFK60 - Fuel Filter for Ford 6.0L Diesel Powerstroke™ Application
EaO88 - Oil Filter for Ford 6.0L Diesel Powerstroke™ Application
More Power in PowerCore®
In July 2004 AMSOIL introduced new PowerCore
air filters for Ford 6.0L Diesel PowerStroke™ and H2 Hummer
6.0L Vortec™ engines. The rugged structure and fluted media
construction of these PowerCore filters provide increased contaminant
holding capacity, more efficiency and eliminate media movement.
PowerCore Technology
Donaldson PowerCore air filters are widely known
in the heavy-duty market for being reliable, premium products.
Their flawless repuation and proven performance make Donaldson
filters a perfect match for AMSOIL.

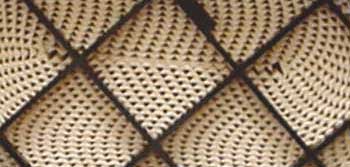

In filters featuring PowerCore technology, the
media is formed into flutes. These flutes are layered to give
tight, rugged structure to the filter. The fluted channels are
alternately sealed allowing air to enter through an open flute
and forcing it to exit out an adjacent flute. Dirty air travels
in and is filtered in one pass through the media.
Superior Performance
The superior performance of the PowerCore
air filtration products for Ford 6.0L PowerStroke Diesels and
H2 Hummer 6.0L Vortecs has prompted AMSOIL to expand its offering
of Donaldson filtration products to include the entire line of
PowerCore air filters. New primary and safety PowerCore filtration
products are available for John deere and Freightliner applications,
as well as a new air induction system for Ford 7.3L PowerStroke
Diesel trucks.
Donaldson P603577 PowerCore®
Technology Air Filter for Ford 6.0L Diesel PowerStroke™
Applications (P603577, SDF88, FFK60)
2003/2004 Ford Excursion w/6.0L
Turbo Diesel
2003/2004 Ford Super Duty Pickups w/ 6.0L Turbo Diesel
2003/2004 Ford Vans with 6.0L Turbo Diesel Engine
2003/2004 IHC VT365 (6.0L) Turbo Diesel Engine
AMSOIL PCFH2 PowerCore®
Technology Air Filter for GM H2 Hummer 6.0L Vortec™ Applications:
2003/2004 GM Hummer H2
AMSOIL FFK60 Fuel Filter
for Ford 6.0L Diesel PowerStroke™ Applications
The AMSOIL FFK60 Fuel Filter incorporates
both a primary and secondary filter for maximum fuel cleanliness.
The primary 10 micron filter, located in the Horizontal
Fuel Conditioning Module (HFCM), performs initial fuel cleansing
before sending the clean pressurized fuel to secondary four
micron filter, mounted to the oil filter housing.
The secondary fuel filter includes
a fuel pressure regulator and an orifice on top of the housing
that bleeds air out of the housing and back to the fuel
tank. Following its trip through the secondary filter, fuel
is returned to the HFCM, where it is either directed to
the tank or returned to the primary filter.
AMSOIL EaO88 Oil Filter
for Ford 6.0L Diesel PowerStroke™ Applications
A
premium, high efficiency cartridge oil filter utilizing nanofiber
technology for Ford 6.0L diesel engines ranging from 2003
to 2006. The new EaO88 is the world’s first oil filter
cartridge for diesel applications using advanced submicron
full synthetic media. The EaO88 provides an efficiency of
98.7% at 16 microns, significantly higher than the OEM filter.
The rigid construction of this filter is
due to a polymeric center tube and end caps, along with
its proprietary composition incorporating special grade
nanofiber synthetic media, enabling the filter to last up
to 1 year or 25,000 miles when used in conjunction with
AMSOIL synthetic motor oil. Because of its improved oil
flow, an additional benefit of this synthetic filter media
is that oil is delivered to key engine components quicker,
thus enhancing the lubrication process during cold weather
starts.

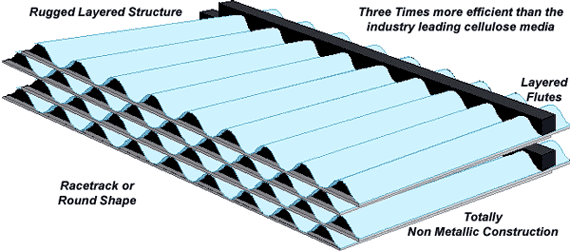

Advantages to the PowerCore™
Filters
Straight-through air flow
Less Restriction
Increased Capacity
Increased Efficiency
Shape flexibility
Increased system design options
Layered media structure
Non-metallic
Premium Air Filter Construction

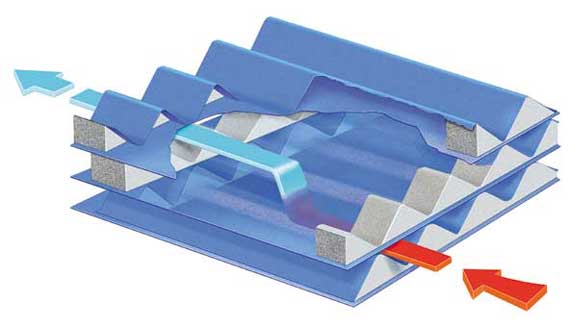

Less Restriction with Straight-Through
Airflow
Additional Advantages to
the PowerCore™ Filters

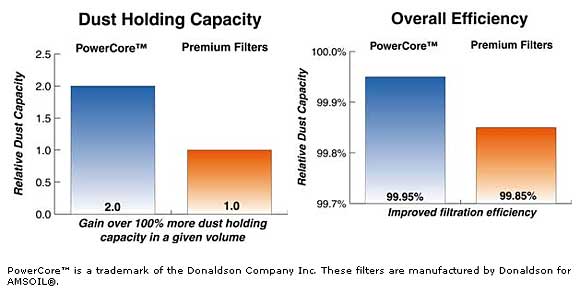

Increased holding capacity per volume
Three times more efficient than the
industry leading cellulose element
