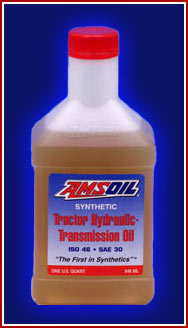

AMSOIL Synthetic Tractor Hydraulic/Transmission
Oil is an "all weather" Universal Tractor Transmission
Oil (UTTO) engineered to meet the tough demands of heavy-duty,
hydraulic-powered farm and commercial equipment. Its unique formulation
of synthetic base stocks and additives effectively reduces wear,
resists heat, protects against rust and extends fluid and equipment
service life. AMSOIL Synthetic Tractor Hydraulic/Transmission
Oil is recommended for extended oil drains based on oil analysis.
Excellent Protection in Temperature Extremes
AMSOIL Synthetic Tractor Hydraulic/Transmission
Oil operates over a wide range of temperatures. It has a high
viscosity index to maintain its lubricity at high operating temperatures,
and it flows at temperatures as low as -47°F (-44°C) for
improved equipment operation and wear protection at low temperatures.
AMSOIL Synthetic Tractor Hydraulic/Transmission Oil exceeds the
most demanding "all weather" specifications of both
Ford New Holland FNHA-2-C-200 & 2-C-201 and John Deere J20C
& J20D, eliminating the need for seasonal oil changes.
Smooth Brake Operation
AMSOIL Synthetic Tractor Hydraulic/Transmission
Oil is formulated with durable friction modifier additives that
effectively suppress wet brake chatter. Unlike conventional oils
that can break down and cause vibration, AMSOIL Synthetic Tractor
Hydraulic/Transmission Oil provides continuous frictional stability
for long-term smooth brake operation.
Feature:Multi-Viscosity Benefits: Excellent cold and hot
weather protection, no seasonal change outs
Feature:Universal
Applications Benefits: Inventory consolidation,
no misapplications
Feature:Stable
Friction Modifier Additives Benefits: Correct and decisive multi-disc/clutch
operation, excellent control over brake chatter, smooth operation,
extended oil and equipment life
Feature:Anti-Foam
Additives Benefits: Rapid air release, cooler
operation, smooth brake operation, control over fade and spongy
hydraulic response
Feature:Oxidation
Inhibitors Benefits: Excellent resistance to
oil degradation at high temperatures, extended lubricant and equipment
life
Feature:Seal
and Hose Conditioners Benefits: Compatible with all seal
materials, seal and hose flexibility, positive seal seating, reduced
oil leaking, extended seal and hose life, fewer blown hoses
Feature:Superior
Anti-Wear Additives Benefits: Scoring and gear wear
protection under all load conditions, extended equipment life
even under severe conditions, increased pump and valve life, may
be used in final drives calling for a UTTO
APPLICATIONS
AMSOIL Synthetic Tractor Hydraulic/Transmission
Oil is Recommended for equipment combinations of transmissions,
hydraulic systems, final drives, power take-off systems and wet
brakes operating in "all weather" hot and cold temperatures,
including, but not limited to, the following:
Farm tractors and equipment
Fork lift trucks
Pavement rollers
Off road equipment:
Loaders
Backhoes
Bulldozers
Tractors
Logging equipment
Ditchers
Concrete formers
Lawn tractor hydrostatic transmissions
Golf course mower hydrostatic systems
4x4 ATV models with wet brake differentials
PERFORMANCE DATA
AMSOIL Synthetic Tractor Hydraulic/Transmission
Oil is recommended for applications that specify the following
requirements:
AGCO/Duetz-Allis/Allis-Chalmers
Power Fluid 821 XL, 257541, 246634
Allison -
C-4, C-3, C-2
Case Corp. J.I.
Case & IH MS-1207 (Hy-Tran® Plus), MS-1210 (TCH
Fluid JIC145), MS-1230 (Poclain Equip-high pressure systems),
B-6, MS-1206 (PTF), MS-1205 (TFD-II), MS-1204 (TFD), JIC-185,
JIC 144, JIC-143, B-5
White farm (Oliver)
- Q-1826, Q-1802, Q-1766B, Q-1722, Q-1705
Yanmar
® Registered Trademarks
INSTALLATION
AMSOIL Synthetic Tractor Hydraulic/Transmission
Oil is fully compatible with conventional hydraulic/transmission
oils. To install AMSOIL Hydraulic/Transmission Oil in a hydraulic
system, drain the existing hydraulic/transmission oil, change
filters and install AMSOIL Synthetic Hydraulic/Transmission Oil.
AMSOIL Synthetic Tractor Hydraulic/Transmission
Oil is recommended for the replacement of, but not limited to,
the following oils:
ARCO Tractor Fluid; BP Tractran UTH; Case
Hytran; Chevron Torque Fluid; Chevron Tractor Hydraulic Fluid;
Conoco Power-Tran III Fluid; Conoco Farm Master; Gulf Universal
Tractor Fluid; John Deere Hy-Gard; Kendall HYKEN 052; Kubota UDT;
Lubrication Engineers 7500; Lubriplate UTF C-4; New Holland, Ford
M2C134-D & FNHA-2-C-200.00 & 201; Mobilfluid 300, 350
and 424; Pennzoil HYDRA-TRANS; Phillips HG Fluid; Royal Purple
SYN-TRACTOR III WG; Shell Donax TD
